007 MLM 4-PORT VOICE MAIL





The Legend / Magix 007 MLM Mail 4-port has 4-ports to receive or play back 4 simultaneous messages. Up to 21 hours of message storage for the capacity you need. Up to 100 mailboxes for all your employees. Modular circuit pack slides right into your Merlin Legend control unit; no need for extra wall space, extra power supply or extra surge protector. Three Automated Attendants enable different coverage for different departments. Separate day, night, and holiday schedules for each Automated Attendant. Cascaded outcalling can call an employee's home phone, cellular phone and pager to announce new messages. Personal operator transfers callers from your mailbox to a co-worker. Bulletin Board gives callers routine messages such as hours of operation, driving directions or snow day advisories. Message Waiting light activated for new messages only. Toll fraud security automatically locks a mailbox when outsiders attack.

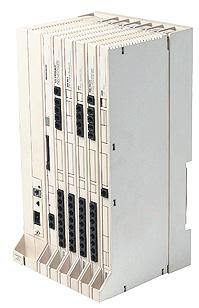

MERLIN LEGEND 7.0 PROCESSOR



Legend Processor Release 7.0 Enhancements. Release 7.0 includes all Release 6.1 functionality plus the enhancements listed below. MLS and Enhanced Tip/Ring (ETR) Telephone Support. Supports the Legend 016 ETR Module allowing customers to use existing Partner MLS, Partner ETR (Eurostyle), Transtalk 900, and Business Cordless 905 telephones on their Merlin Legend System Expanded Digital Station Capacity. Supports the Legend 016 MLX Module increasing the maximum number of digital telephones from 127 to 200 Voice Announce on Idle Only option on MLX telephones Priority Call Queuing Calling Party Name on Caller ID and support for the Legend 408 GS/LS MLX with Caller ID (ICLID) module Enhanced MLX Headset Operation Touch-Tone or Rotary Signaling Abandoned Call Information Reported to Merlin Legend Reporter.



800 GS/LS ID



Legend / Magix 800 GS/LS ID Module supports up to 8 central office lines which can be either loop-start or ground-start Contains 2 power failure transfer ports Lines can be individually configured for loop-start or ground-start.



012 ANALOG EXT CARD



Legend / Magix 0 x 12 Basic w/ Ring Generator. Connect up to 12 touch tone or rotary telephones or standard tip/ring devices such as fax machine, nswering machine, etc. Built in ring generator. Provides 2 system wide TTR.



016 ANALOG EXT CARD



Legend / Magix 0 x 16 Basic w/ Ring Generator, supports up to 16 single-line devices including fax machines and modems Necessary for external Voice-Mail integration such as Intuity Audix or Messaging 2000 4 touch-tone receivers Built-in ring generator Compatible with R5.0 or greater.



408 GS/LS ID MLX CARD



Legend / Magix 408 GS/LS ID MLX (New) Supports up to 4 central office type lines that can be either loop or ground start. Connect up to 8 Merlin ATL multi-line telephones.



100D T-1 CARD



Legend / Magix 100 DS1 (T-1) w/ cables.



008 MLX CARD



Supports up to 8 Merlin Legend Voice Terminals.



MLX-5 Phone



Legend / Magix MLX 5 D, 5 programmable buttons for line appearance or feature access Conference, transfer, hold, mute, HFAI, and built in 2 way, speakerphone. Message waiting light Pull out tray for feature quick-reference Can be desk or wall mounted Compatible with Lucent Legend Multi-Function-Module which allows connection of a Fax Machine, Modem or any other single line device. Dual LEDs on each programmable button 4 soft keys for programming through display 2 line x 24 character display.

MLX-10D Phone



Legend / Magix MLX 10 D, 10 programmable buttons for line appearance or feature access Conference, transfer, hold, mute, HFAI, and built in 2 way, speakerphone. Message waiting light Pull out tray for feature quick-reference Can be desk or wall mounted Compatible with Lucent Legend Multi-Function-Module which allows connection of a Fax Machine, Modem or any other single line device. Dual LEDs on each programmable button 4 soft keys for programming through display 2 line x 24 character display.

MLX-10DP Phone



Legend / Magix MLX 10 DP, 10 programmable buttons for line appearance or feature access Conference, transfer, hold, mute, HFAI, and built in 2 way, speakerphone. Message waiting light Pull out tray for feature quick-reference. The Legend / Magix MLX 10 DP can be desk or wall mounted Compatible with Lucent Legend Multi-Function-Module which allows connection of a Fax Machine, Modem or any other single line device. Dual LEDs on each programmable button 4 soft keys for programming through display.

MLX-16DP Phone



Legend / Magix MLX 16 DP, 16 programmable buttons for line appearance or feature access Conference, transfer, hold, mute, HFAI, and built in 2 way, speakerphone. Message waiting light. Pull out tray for feature quick-reference. the Legend / Magix MLX 16 DP can be desk or wall mounted. Compatible with Lucent Legend Multi-Function-Module which allows connection of a Fax Machine, Modem or any other single line device. Dual LEDs on each programmable button 4 soft keys for programming through display 2 line x 24 character display.

MLX-28D Phone



Legend / Magix MLX 28 D, 28 programmable buttons for line appearance or feature access Conference, transfer, hold, mute, HFAI, and built in 2 way, speakerphone. Message waiting light Pull out tray for feature quick-reference. The Legend / Magix MLX 28 D can be desk or wall mounted Compatible with Lucent Legend Multi-Function-Module which allows connection of a Fax Machine, Modem or any other single line device. Dual LEDs on each programmable button 4 soft keys for programming through display 2 line x 24 character display.

MLX-20L Console Phone



Legend / Magix MLX 20L, 20 programmable buttons for line appearance or feature access Conference, transfer, hold, mute, HFAI, and built in 2 way, speakerphone. Message waiting light Pull out tray for feature quick-reference. The Legend / Magix MLX 20L can be desk or wall mounted. Compatible with Lucent Legend Multi-Function-Module which allows connection of a Fax Machine, Modem or any other single line device. Dual LEDs on each programmable button 4 soft keys for programming through display 7 line x 24 character display.
